Description:

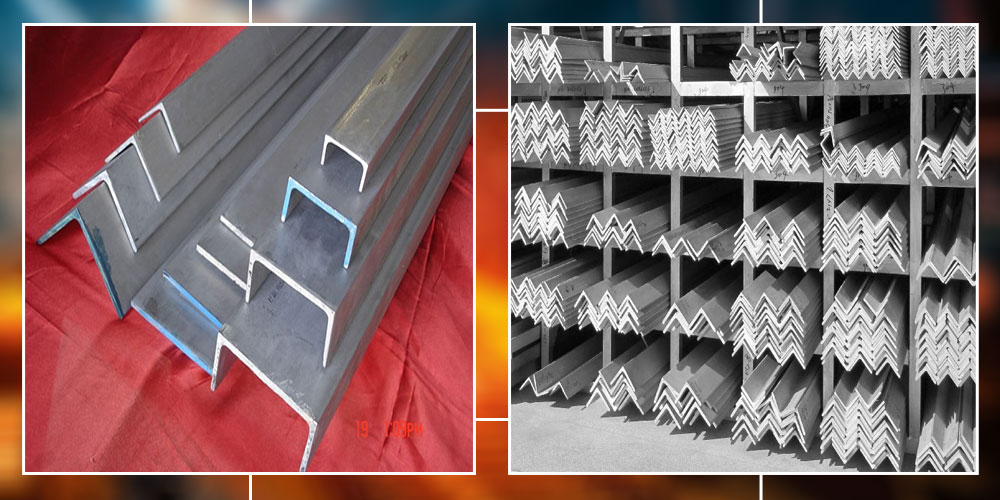

- Equal angle is used in metal construction, industrial and agricultural applications. Various pieces of metal frames, metal brackets, steel chassis, components and parts of machinery can be made from equal angle. Equal angles are available with various types of bar end finish for example-chamfered ends, plain ends without burrs or sharp edges. They go through hot Rolling, annealing and pickling to improve their material properties.
Range
- 20x20x3mm/4mm thick, 25x25x3/4mm, 30x30x3/4mm, 35x35x3/5 mm, 40x40x3/5/6 mm, 50x50x3/5/6 mm, 65x65x3/5/6 mm, 75x75x3/5/6mm, 100x100x5/6mm
Grades:
- 316L, 316, 304L, 304, 303 & 202
Application:
- Architectural Application, Metal Structure, Food Industry, Cryogenic Service, Chemical / Oil Industry and High Temperature service application.
Supply Conditions:
| Length | Up to 6 meters |
|---|---|
| Tolerances | ASTM A484, EN 10056 |
| HRAP | Hot rolled, annealed & pickled |
| Grit Polish | As per customer’s request |
| Bars and finish | Chamfered ends, plain ends without burrs or sharp rdges |
| Specifications | As per EN, DIN, JIS, ASTM, BS, ASME, AISI, etc. |
| Grade confirmation through PMI testing with handheld spectrometer. | |
| Free from radioactive elements, mercury & lead contamination. | |
