Description:

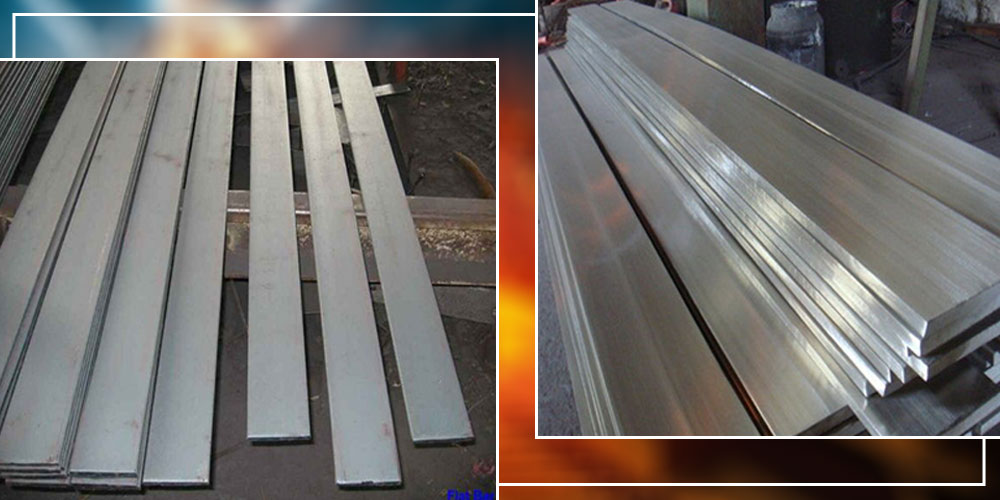

- Flat bars gain their characteristics under hot rolling, annealing, and pickling. The flat surface and angular face make them extremely versatile for the variety of projects such as frame construction, building support, industrial artwork etc. They are available up to the length of 6 meters.
Grades:
- 316L, 316, 304L, 304, 303 & 202
Application:
- Architectural Application, Metal Structure, Food Industry, Cryogenic Service, Chemical / Oil Industry and High Temperature service application.
Supply Conditions:
| Length | Up to 6 meters |
|---|---|
| Tolerances | ASTM A484, EN 10058 |
| HRAP | Hot rolled, annealed & pickled |
| Code | Both ends are color coded as per the customers specific requirement |
| Specifications | As per EN, DIN, JIS, ASTM, BS, ASME, AISI, etc. |
| Laser printing as per grade & size. | |
| Grade confirmation through PMI testing with handheld spectrometer. | |
| Free from radioactive elements, mercury & lead contamination. | |
Size Range:
| Size (mm) | Size (inch) | Thickness (mm) | Thickness (inches) |
|---|---|---|---|
| 20 mm | 7/8″ | 17 mm to 18 mm | 2/3” – 5/7” |
| 25 mm | 1″ | 5 mm to 20 mm | 3/16” – 4/5” |
| 30 mm | 1-3/16″ | 5 mm to 20 mm | 3/16” – 4/5” |
| 32 mm | 1-1/4″ | 6 mm to 20 mm | 1/4” – 4/5” |
| 35 mm | 1-3/8″ | 5 mm to 20 mm | 3/16” – 4/5” |
| 40 mm | 1-4/7″ | 5 mm to 25 mm | 3/16” – 1” |
| 45 mm | 1-7/9″ | 5 mm to 25 mm | 3/16” – 1” |
| 47 mm | 1-6/7″ | 17, 25 & 32 mm | 2/3”, 1” & 1-1/4” |
| 50 mm | 2″ | 5 mm to 32 mm | 3/16” – 1-1/4” |
| 55 mm | 2-1/16” | 5 mm to 25 mm | 3/16” – 1” |
| 57 mm | 2-1/4” | 32 mm | 1-1/4” |
| 60 mm | 2-3/8” | 5 mm to 25 mm | 3/16” – 1-3/8” |
| 63 mm | 2-1/2″ | 10 mm to 30 mm | 3/8” – 1-3/16” |
| 65 mm | 2-5/9″ | 10 to 30 & 35 mm | 3/8” – 1-3/16”, & 1-3/8” |
| 70 mm | 2-3/4″ | 6 mm to 25 mm & 40 mm | 1/4” – 1”, & 1-4/7” |
| 75 mm | 3″ | 8 mm to 25 mm | 5/16” – 1” |
| 80 mm | 3-1/8″ | 8 mm to 20 mm | 5/16” – 4/5” |
| 90 mm | 3-1/2″ | 8 mm to 20 mm | 5/16”- 4/5” |
| 100 mm | 4″ | 8, 10, 12 | 5/16”, 3/8”, 1/2” |
